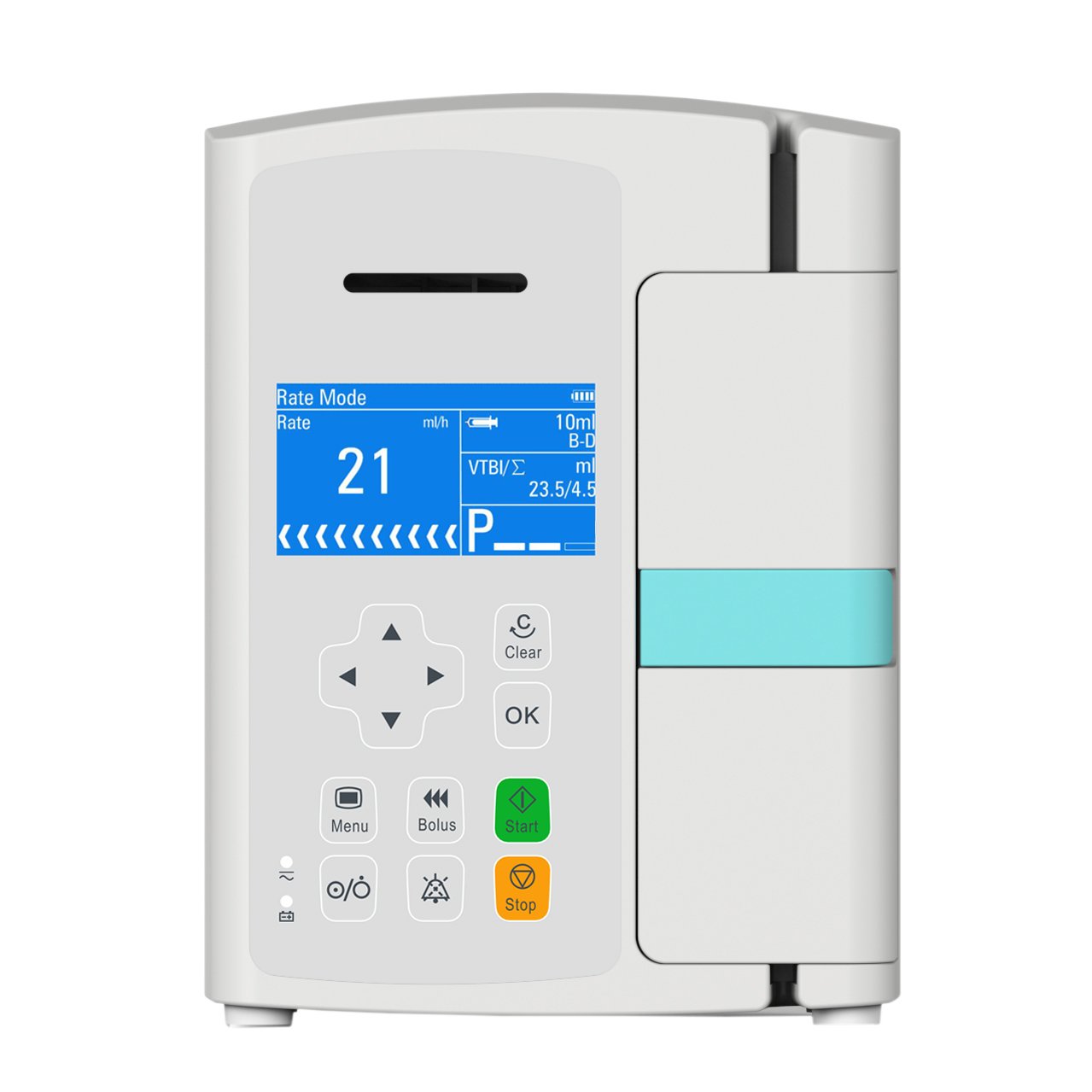

600II Infusion Pump

Mechanism

Peristaltic

IV set type

General

Infusion Modes

Rate mode;
Time mode;
Body weight mode;
Sequential mode.

Flow rate range

0.1~1500ml/h

VTBI

0.1~999.9 ml, increment is 0.1 ml;

1000-9999ml, increment is 1ml

Accumulated volume

0.1-9999ml

Increments

0.1ml/h(0.1-999.9ml/h)
1ml/h(1000-1500ml/h)

Accuracy (± %)

≤±5%

KVO

0.1-5.0ml/h, adjustable, step 0.1ml/h

Bolus rate

0.10-1500ml/h

Purge rate

800ml/h

Occlusion level

3 levels

Occlusion pressure range

Low 150±125 mmHg (20kPa);
Medium 525±125 mmHg (70kPa);
High 900±180 mmHg (120 kPa)

Air bubble level

5 levels

Air bubble size

Single bubble detection: 50, 100, 250, 500, 800l μl
Accumulated bubble detection: 0.1-4.0ml/h, adjustable

Display　

Screen

3.0'' LCD monochrome screen, 240 x 128 pixels

Display info.

Flow rate, current infusion ,VTBI, total volume, IV set brand, pressure limit, battery capacity, drugs, remaining time, alarms

Functions　

Change flow rate during infusion

●

Last configuration memory

●

Front-panel lockout

●

Standby

●

Pause

●

Silence

●

Drip rate function

● (optional)

Drug library　

Drug Library capacity

200

History records　

Records quantity

1500

Records type

Parameter changing; Turn on/off; Start/stop infusion; Bolus; Alarm; Silence.

Records stored time limit

First in first out

Records transmitted to PC

●

Event log

●

Alarm 　

Real-time alarm display

●

Auto self-test system

●

Infusion finish

●

Infusion near end

●

IV set disengaged

●

Occlusion

●

Air in line

●

Flow error

●

Door open

●

System malfunction

●

System abnormal

●

Low battery

●

Battery empty

●

Reminder

●

Standby end

●

No AC Power

●

Interface　

Data port

● RS232

Nurse call jack

●

DC input

●

Battery　

Battery type

Lithium

Battery operating time

>4 hours@25ml/h

Battery recharge time

≤6 hours@100%
