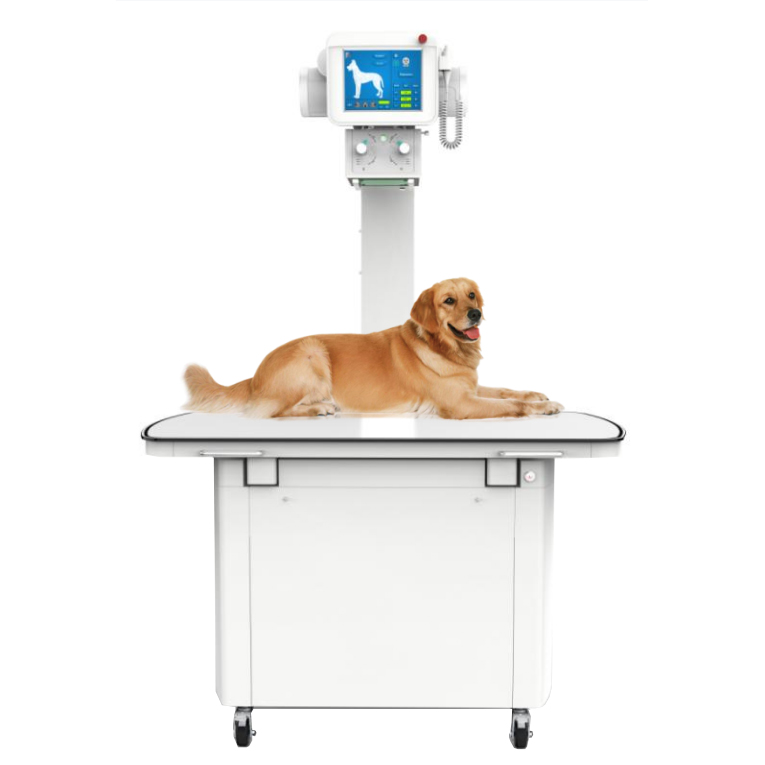

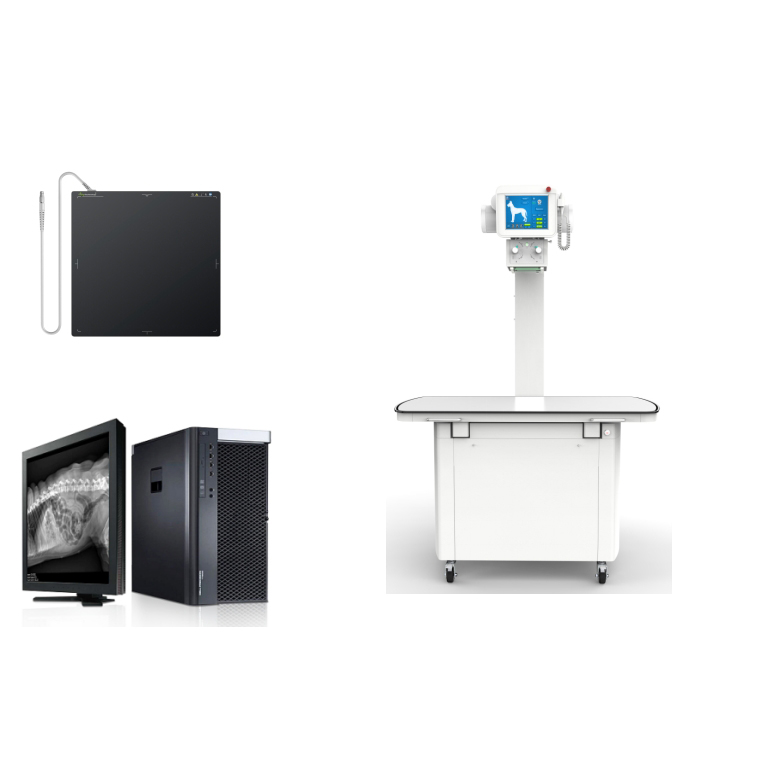

D32DR 400mA Digital X-ray System for Veterinary

X-ray   Generator

Output   Power

32kW

Power   Voltage

220V±22V

kV   range

40~125kV

mA   range

32~400mA

mAs   range

0.32   ~400mAs

Loading   time

10~5000ms

X-ray Tube

Small   focus

1.0

Large   focus

2.0

Anode   speed

2800r/min

Collimator

Inherent   filtration

1.0mm   Al /75kV

Light   Source

Super   LED

Mechanic   Table

SID

1000mm

Bucky

18*18

Bearing

≤150kg

Top   Table Size

1400X700X850mm

Table   Movement

With   wheels

Floating   Table Top Movements

Four   Ways

Floating   Table Top Position

by   electromagnet
