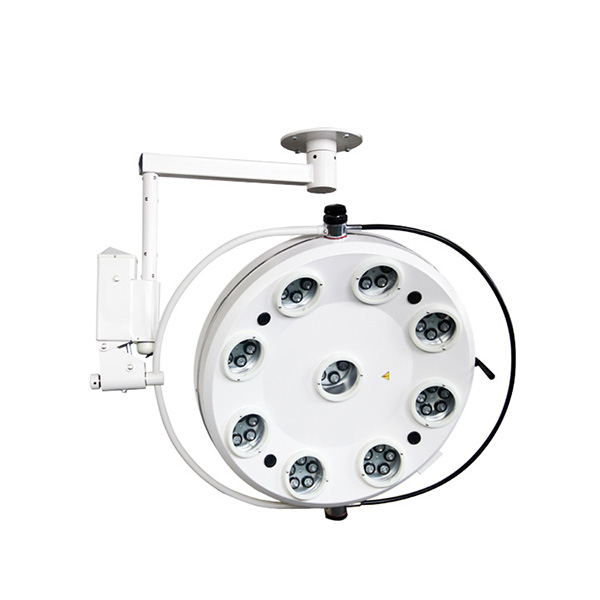

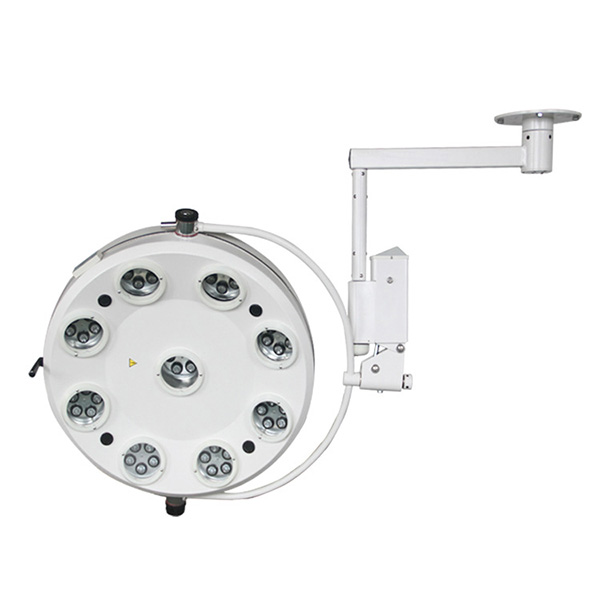

LED-9
Modern LED lighting technology
■ Traditional suspension
■ Variety of configurations: ceiling mounted, wall mounted and floor standing
■ A high-quality system to match your OR needs and your budget
The advanced LED technology in our lightheads offer:
■ High intensity
■ Cool, bright white light
■ Accurate color rendition
■ Superior deep-cavity illumination
■ Excellent shadow control
■ Energy efficiency
Technical Parameter
Light intensity in Lux at 1 meter distance | 90,000-150,000 |
Color Temperature (K) | 4000±500 |
Color rendering index(Ra) | ≥90 |
Focusable Light Field size (mm) | 200±50 |
Working distance (mm) | 60-140 |
Depth of Illuminance (mm) | ≥800 |
Temperature increase in the head area | 0.5℃ |
Radiance Energy (w/㎡) | 600 |
Diameter of Lamp Head (mm) | 1000 |
Light Source LED (pcs) | 45 |
Life-span of the LEDs | 50, 000 h |
Electric & frequency (V& Hz) | 100-240 & 50/60 |
Modern LED lighting technology
■ Traditional suspension
■ Variety of configurations: ceiling mounted, wall mounted and floor standing
■ A high-quality system to match your OR needs and your budget
The advanced LED technology in our lightheads offer:
■ High intensity
■ Cool, bright white light
■ Accurate color rendition
■ Superior deep-cavity illumination
■ Excellent shadow control
■ Energy efficiency
Technical Parameter
Light intensity in Lux at 1 meter distance | 90,000-150,000 |
Color Temperature (K) | 4000±500 |
Color rendering index(Ra) | ≥90 |
Focusable Light Field size (mm) | 200±50 |
Working distance (mm) | 60-140 |
Depth of Illuminance (mm) | ≥800 |
Temperature increase in the head area | 0.5℃ |
Radiance Energy (w/㎡) | 600 |
Diameter of Lamp Head (mm) | 1000 |
Light Source LED (pcs) | 45 |
Life-span of the LEDs | 50, 000 h |
Electric & frequency (V& Hz) | 100-240 & 50/60 |
