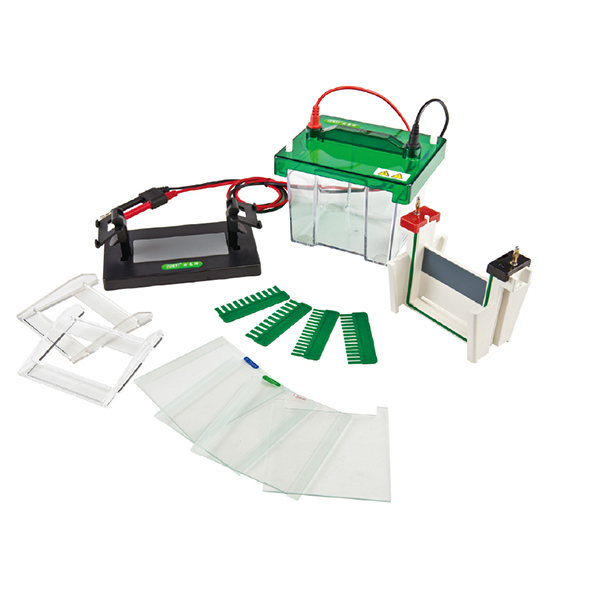

Vertical Electrophoresis

Technical Specifications

■ Glass plate size(W×L):100×100 mm

■ Gel Size(W×L): 82×88 mm

■ Gel thickness:0.75, 1.0, 1.5(mm)

■ Gel amount:1～2(pieces)

■ Sample volume: (0.75mm)11, 15 wells; (1.0mm)11, 15wells; (1.5mm)11, 15wells

■ Buffer Volume: ～750(ml)

■ Dimension(L×W×H):150×120×115(mm)

■ Net weight:1.5(kg)

Characteristic Features

■ The installation of the glass plate in just 15 seconds, and does not need the knob, fast and convenient.

■ With a gel casting in original position, no need to move glasses from gel making to elctrophoresis running.

     It is more convenient to observe gel preparing through both sides of the glasses.

■ High transparent polycarbonate material injection molding, impact resistance, high temperature resistance, corrosion resistance.

■ Safety cover open button design, convenient opening the cover.

■ With the background color, easy to be observed in the sample adding and electrophoresis process.

■ Abundant buffer not only guarantees cooling effects, but also keeps the pH Value stable during the whole experiment process.

■ Auto-switch-off when the lid is removed.
