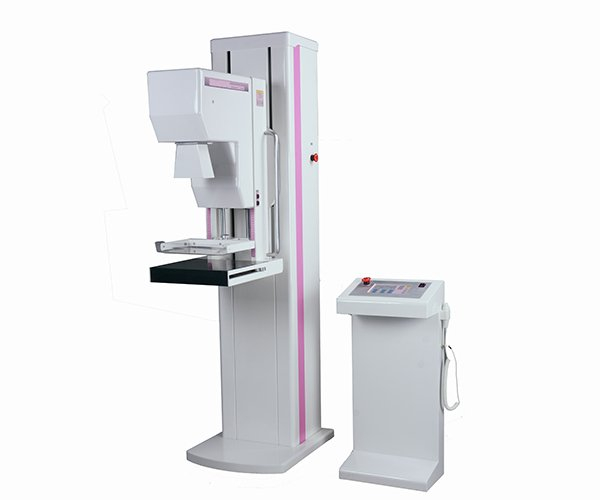

XM-4000B Mammography System

Specifications

X-ray Generator

● Complete solid-state high-frequency high-voltage generator

● Generator Type: High Frequency Inverter 80kHz

● Input Power: Single phase 220VAC, 50/60Hz

● Radiographic Rating:

Small Focus: 20-35kV/10-100mAs

Large Focus: 20-35kV/10-510mAs

● Power Rating: 6kW

● Input Power: Single phase 220VAC, 50/60Hz

● Radiographic Rating: 6kW

X-ray Tube

● Model: IAE C339V

● Focal Spot Size: Dual Focus 0.1/0.3mm

● Target Material: Molybdenum (Mo)

● Port Material: Beryllium (Be)

● High-speed Anode Drive: 2800/1000rpm

● Target Angle: 10°/16°

● Anode Heat Storage: 210kJ (300kHU)

● Anode Cooling: Air cooling

● Filtration: Mo (0.03mm), Al (0.5mm)

Radiographic Stand

● C-arm: Vertical Movement: 590mm

● C-arm returns to original position with one button press

● Rotations Degree: +90°～-90°

● Automatic decompression after exposure display

● Flexible stepless compression speed

● Maximum Pressure: 200N

● Maximum Travel: 150mm

● SID: 650mm

Cassette Image Receptor

● Receptor Size: 18×24cm

● Bucky Device: 18×24cm; Bucky drive mechanism

● Grid Ratio: 5:1, 30 Line/cm

Tissue Compression

● Manual & Motorized (Maximum 20kg)

● Compression Force & Thickness Data Display

● Micro-control compression

● Automatic Release
