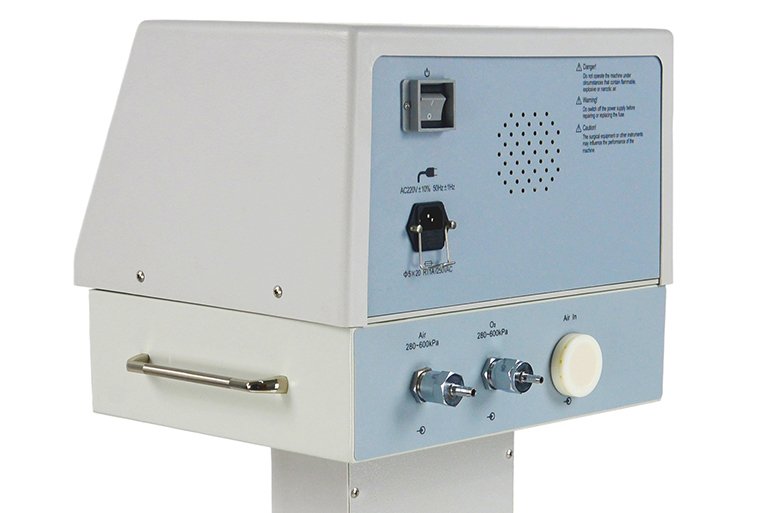

Medical Ventilator PA-700B II

Medical Ventilator PA-700B

Specifications:

▅ Display: 10.4 inch high visibility color TFT display

▅ Ventilation Mode: A/C, IPPV, SIPPV, IMV, SIMV, Standby, SPONT MANUAL

▅ Minute Volume: Greater than or equal to 18L

▅ Back-up Power Supply: At least 4 hours

▅ Tidal Volume:  Adjustable range: 50-1500ml / Display range: 0-2000ml

▅ Respiratory Rate: 1-99bpm

▅ Inspiratory/expiratory (I:E) Ratio: 4 ;1-1 ;4

▅ PEEP: 0-10cmH2O

▅ SIMV Rate: 1-20bpm

▅ Inspiratory Pressure Trigger: -10-10cmH2O

▅ Inspiratory Plateau: Adjustable from 0-50% of inspiratory time

▅ Adjustable Oxygen Concentration: 21-100%

▅ Gas Supply Requirement: 280～600 kPa medical grade oxygen and compressed air supply

▅ Maximum Safe Operating Pressure: ≤6.0kPa

▅ Tidal Volume Alarm: Upper Limit: 10~2000ml, Lower Limit: 0~1800ml

▅ Airway Pressure Alarm: Upper Limit: 0.1~6kPa, Lower Limit: 0~5kPa

▅ Oxygen Concentration Alarm: Upper Limit: 22~100%, Lower Limit: 21~80%
