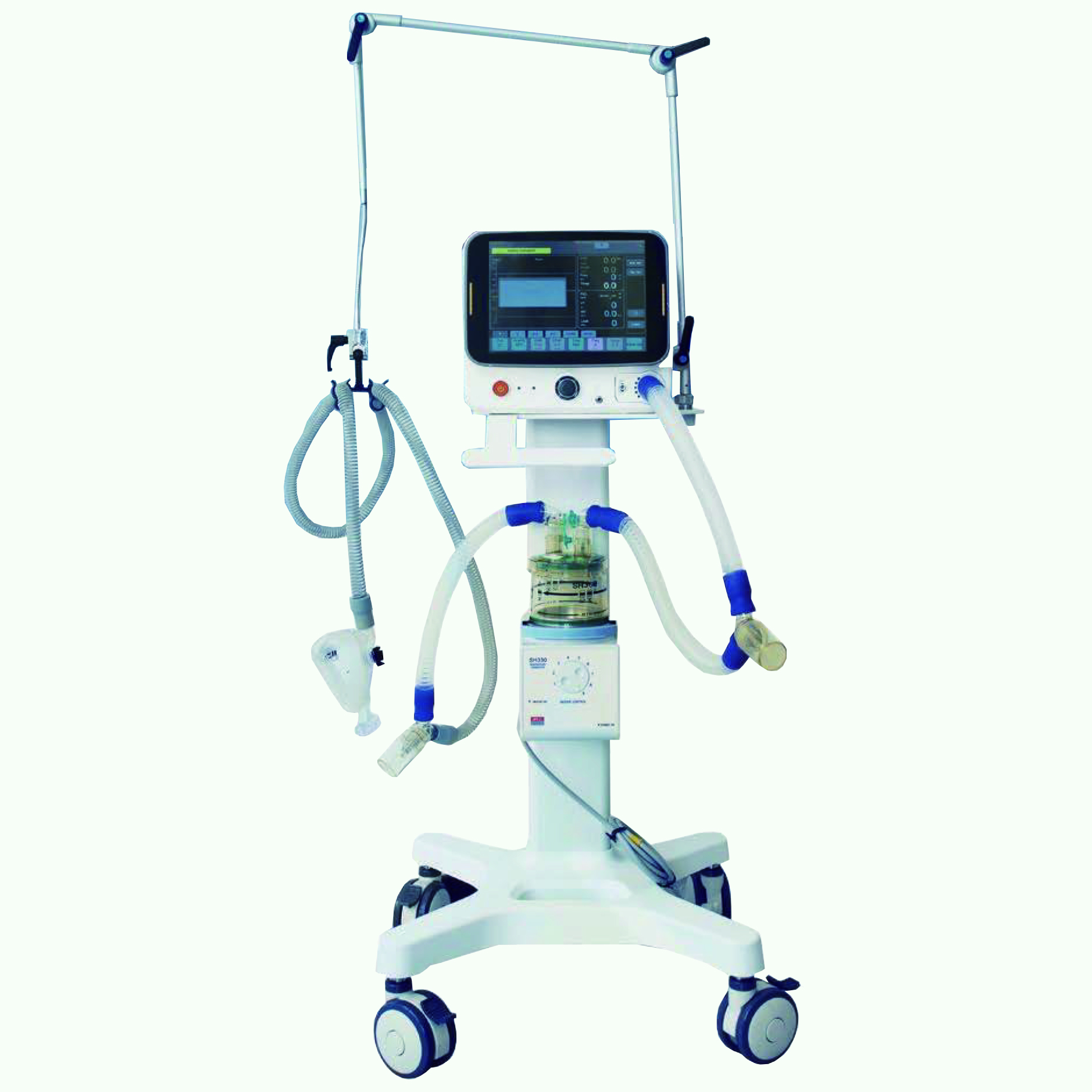

PA-400 Non-invasive Ventilator

TECHNICAL SPECIFICATION

● Ventilation mode:

S/T  T  S  CPAP  PC  HFNC  AUTO  AVAPS  NIPPV  HFNC   MANUAL   NCPAP

● Ventilator Parameter Range

AVPAS

ON/OFF

Tidal volume

200 mL~1500 mL

Increment: 10 mL

Respiratory rate

3 bpm~-40 bpm

Increment: l bpm

Inspiratory time

0.0, 0.5S~3.0 S

Increment: 0.1 S

Inspiratory Pressure (IPAP)

4 cmH₂O~40 cmH₂O

Increment: 0.5 cmH₂O

Maximum inspiratory Pressure (IPAPMAX)

4cmH₂O~40 cmH₂O

Increment: 0.5 cmH₂O

Minimum inspiratory Pressure (IPAPMIN)

4 cmH₂O~39.5 cmH₂O

Increment: 0.5 cmH₂O

Expiratory Pressure (EPAP)

4cmH₂O~35 cmH₂O

Increment: 0.5 cmH₂O

Continuous positive airway pressure (CPAP)

4cmH₂O~-20 cmH₂O

Increment:0.5 cmH₂O

Pressure delay rise time

0~60 min

increment: 1min

Pressure rise time

automatic adjustment, 0.1 S~0.6 S

Increment: 0.1 S

● Oscillogram

P.T(Pressure-Time)

F-T(Flow-Time)

Inspiratory sensitivity

Adjusting range: automatic adjustment, 1, 2, 3

Increment:1

Exhalation Sensitivity

Adjusting range: Auto Adjust, 1,2,3

Increment l

Comfort

Adjusting range: Off, 1, 2, 3

Increment:1

Auto Function

On/off

Pressure Limits

S,T, S/T, PC mode: 10 cmH₂O~40 cmH₂O

Increment: 0 5 cmH₂O

CPAP mode: 10 cmH₂O~20 cmH₂O

Increment: 0.5 cmH₂O

● Monitoring parameter

Frequency(Freq)

0-100 bpm Resolution: 1 bpm

Tidal Volume (VT)

0-2000 mLResolution:1 mL

Minute ventilation volume (MV)

0 to 99 L/min Resolution: 0.1L/min

when≥10 L/min; 0.1 L/min

when <10 L/min; 0.01 L/min

Inspiratory time (Time)

0.0~3.0S Resolution: 0.1s

Respiratory pressure

0~40cmH₂O Resolution: 0.1 cmH₂O

0cmH₂O~50cmH₂O

Increment 0.l cmH₂O

● Packing size

Main components: L 550*W 380*H 400 mm

G.W.: 11 KG NW.: 5.7 KG

Trolley: L900*W 680*H300 mm

G.W. :23 KG N.W.: 13.5 KG

● Alarm and Protection

Apnea alarm

Apnea time lasts for 10s (±2s), and there is no exhalation

Breathing circuit disconnection alarm

when the breathing circuit is disconnected and lasts for 16 s (± 1s)

Low ventilation volume alarm

Range: off, 0.5 L/min~15 L/min

High Frequence Alarm

Range: off, 2 bpm-99 bpm

Low Frequence Alarm

Range: off, 1 bpm~60 bpm

Airway high pressure alarm(Range)

S, T, S/T, PC mode: 10 cmH₂O~40 cmH₂O

CPAP mode: 10 cmH₂O~20 cmH₂O

Low tidal volume alarm

Under AVAPS ventilation mode

High oxygen concentration alarm

range: 19 Vol.%~100 Vol.%

Low oxygen concentration alarm

range: 18 Vol. %~99 Vol. %

Equipment high temperature alarm

when the fan temperature is greater than 90 °C (± 10 °C)

Low Oxygen supply pressure Alarm

when O₂ input pressure< 280kPa

High Oxygen supply pressure Alarm

when O₂ input pressure>600kPa
