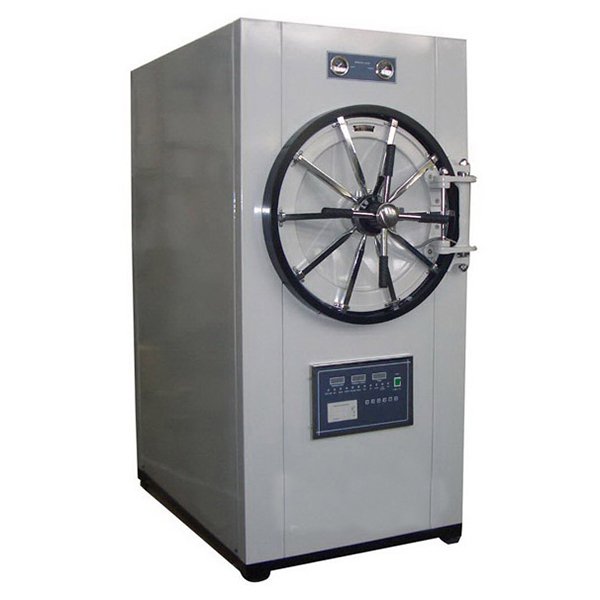

PTS-150YDB/200YDB/280YDB
Characters:
■ Sterilizing course automatic sterilization controlled by computer, easy to operate.
■ With drying function, suitable dressing drying.
■ With over-temperature, over-pressure auto-protect device.
■ The door opening mechanism cannot be operated until the pressure in the chamber is reduced to 0.027MPa.
It can’t be start on if the doesn’t closed well.
■ The safety value will be open automatically when the inner pressure over0.24MPa, and the steam be exhausting
to the water tank.
■ The power will be cut-off automatically, cut-off the water and alarm when the machine lacking water.
■ The chamber of the sterilizer is made of stainless steel.
■ With printer.
Technical Data:
Technical data
PTS-150YDB
PTS-200YDB
PTS-280YDB
Sterilizing chamber
volume
150L
φ440×1000mm
200L
φ515×1000mm
280L
φ600×1000mm
working pressure
0.22 MPa
working temperature
134℃
Adjustment of temperature
40℃ - 134℃
Time of sterilization
0-99 min
Time of drying
0-99 min
Heat average
≤± 2℃
Power
9KW/380V 50Hz
9KW/380V 50Hz
12KW/380V 50Hz
Dimension
1400×650×1600
1400×750×1700
1520×910×1900
Transport dimension
1560×820×1820
1560×910×1880
1680×1080×2100
G.W/N.W
430/340 KG
436/350 KG
570/462 KG
Characters:
■ Sterilizing course automatic sterilization controlled by computer, easy to operate.
■ With drying function, suitable dressing drying.
■ With over-temperature, over-pressure auto-protect device.
■ The door opening mechanism cannot be operated until the pressure in the chamber is reduced to 0.027MPa.
It can’t be start on if the doesn’t closed well.
■ The safety value will be open automatically when the inner pressure over0.24MPa, and the steam be exhausting
to the water tank.
■ The power will be cut-off automatically, cut-off the water and alarm when the machine lacking water.
■ The chamber of the sterilizer is made of stainless steel.
■ With printer.
Technical Data:
Technical data
PTS-150YDB
PTS-200YDB
PTS-280YDB
Sterilizing chamber
volume
150L
φ440×1000mm
200L
φ515×1000mm
280L
φ600×1000mm
working pressure
0.22 MPa
working temperature
134℃
Adjustment of temperature
40℃ - 134℃
Time of sterilization
0-99 min
Time of drying
0-99 min
Heat average
≤± 2℃
Power
9KW/380V 50Hz
9KW/380V 50Hz
12KW/380V 50Hz
Dimension
1400×650×1600
1400×750×1700
1520×910×1900
Transport dimension
1560×820×1820
1560×910×1880
1680×1080×2100
G.W/N.W
430/340 KG
436/350 KG
570/462 KG
