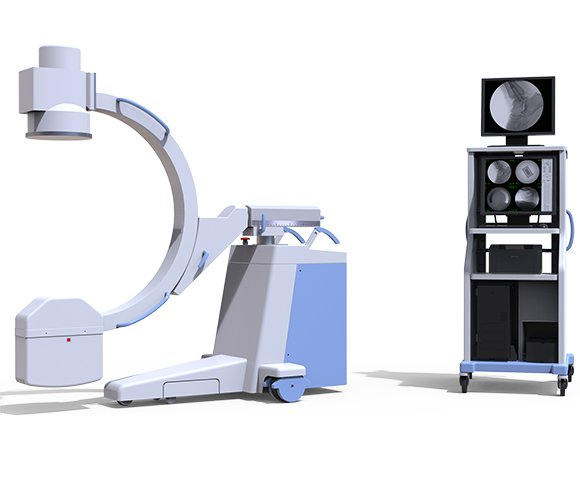

XM112/XM112E
Specifications
Model | XM112 | XM112E |
Fluoroscopic Capacity | ||
Power Output | 40kV～110kV | 40kV～120kV |
Tube Current (For Radiography) | 20～63mA | 20～100mA |
Fluoroscopy | Automatic/Manual: 40kV～110kV/0.3～4mA | Automatic/Manual: 40kV～120kV/0.3～4mA |
Pulse: 40kV～110kV/4.1～8mA | Pulse: 40kV～120kV/4.1～8mA | |
Photography Capacity | ||
Maximum Rated Capacity | 3.5kW | 5kW |
Tube Voltage & Current Combination | 40kV～49kV 1 ～125mAs | 40kV～49kV 1 ～180mAs |
50kV～59kV 1 ～110mAs | 50kV～59kV 1 ～140mAs | |
60kV～69kV 1 ～90 mAs | 60kV～69kV 1 ～125 mAs | |
70kV～79kV 1 ～80 mAs | 70kV～79kV 1 ～110mAs | |
80kV～89kV 1 ～71 mAs | 80kV～89kV 1 ～100mAs | |
90kV～99kV 1 ～63 mAs | 90kV～99kV 1 ～80 mAs | |
100kV～110kV 1 ～40 mAs | 100kV～109kV 1 ～63 mAs | |
110kV～120kV 1 ～50 mAs | ||
mAs | 1～125mAs | 1～180mAs |
X-ray Tube | ||
Focus (Fixed Anode) | Small Focus: 0.3; Large Focus: 1.5 | |
Inverter Frequency | 40 kHz | |
SID | 960mm | |
Anode Thermal Capacity | 35kJ (47kHU) | |
Tube Thermal Capacity | 460kJ (613kHU) | 650kJ (867kHU) |
Power Supply | 220V, 50Hz | |
Video System | ||
Image Intensifier | 9″TOSHIBA Image Intensifier | |
CCD Vidicon Tube | Imported Japanese 0.47 Mega Pixel Ultra Low-light 8 bit CCD (Original binding, WATEC) | |
CCU (central control) | Recursive Filter: K=8,7 image storage, upright image, overturned image, positive & negative image, LIH (last Image Hold), and OSD (monitor display) | |
Workstation | Yes | No |
Monitor | 19″LCD Monitor (2 sets) | Single 14″CRT attached to C-arm frame, ±135° rotation |
Structure | ||
Directive Wheel | ±90° rotation，instant rotational readjustments | |
Support Stand Vertical Travel | 400mm | |
C-arm | Forward Back Movement: 200mm | |
Revolution Around Horizontal Axis: ±180°, Revolution Around Vertical Axis: ±15° | ||
Orbital Rotation: 120° (+90°～ -30°) | ||
