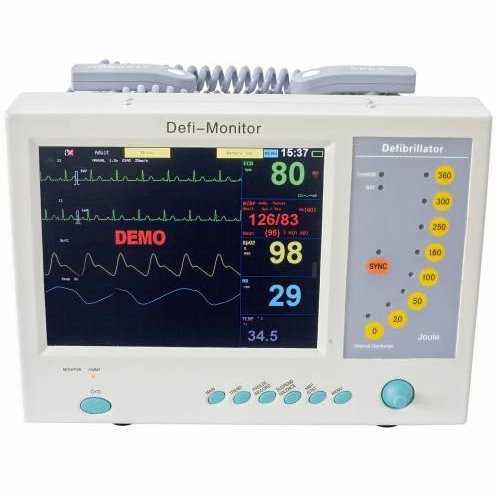

PT-9000B Defibrillator

Features:

● Physical characteristics:

● Main unit: Desktop

● Dimensions: L410xW360xH260

● Weight: 12kg

Specifications:

1. Defibrillator

● Defibrillator type: Manual, Synchronized, Asynchronized,

● Energy accuracy: ∠+1%

● Energy selection: 0, 20, 50, 100, 160, 250, 300, 360 joules(nominal at a resistance of 50)

● Charging time: Maximum 10 seconds to 360 Joules

● Standard Adult/Pediatric Paddles: Reusable external adult paddles (pediatric paddles integrated)

2. Power requirements

● AC Power supply: 100V~240V,50Hz/60 Hz

● Vehicle Voltage (Option): DC 12V

3. Internal Battery Backup

● Battery type: Rechargeable lead-acid battery (12V 2.0Ah  X2)

● Charging time: Time-Minimum of 4 hours for full charging

● Battery charging: During AC Power Supply operation of the device.

● Charging /Low Battery Indication :Red LED

● Battery Capacity:100% of the battery will provide 120-min of monitoring; and 35 discharges at 360 joules.

4. Display

● LCD Dimensions: 10.4 inch

● Type: High resolution true-color graphic LCD

5. ECG

● ECG lead: Ⅰ, Ⅱ, Ⅲ, AVR, AVL, AVF, V1～V6

● S-T segment analysis: -2.0～2.0mv

● Arrhythmia analysis: yes

● Protection: With stand 4000vAc/50Hz voltage in isolation and work against electrosurgical knife and defibrillation

6. Respiration

● Measurement method: Thoracic impedance

7. NIBP

● Working mode: Manual/Automatic/stat

● Method:  Automatic oscillation

● Cuff type: standard Adult; optional Pediatric/Neonatal

8. Temperature

● Measurement range 20~45℃

● Resolution 0.1℃

9. Pulse Oximetry (SPO₂)

● Display :  spo2 value, pulse histogram, waveform, Pulse

● Range:  0~99%for adult, pediatric and neonatal patients

● Probe:  standard adult finger clip

● optional pediatric Y-type clip and neonatal wrap

10. Pulse range

● Pulse range: 0-255bpm

11. Standard parameter & configuration

● ECG/RESP/SPO2/TEMP/PR/NIBP/DEFIBRILLATOR

12. Optional Parameter

● Recorder, Li-ion battery (11.1V 4Ah  X2)
