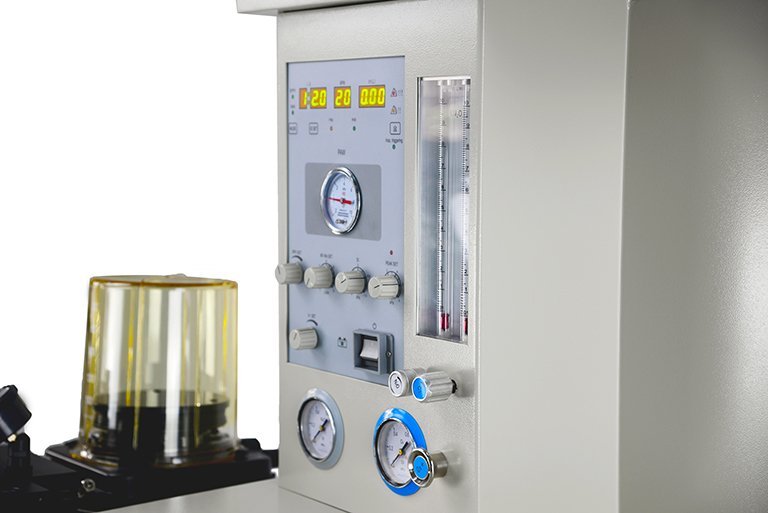

JINLING-01 II Anestesia Machine

● Operating Modes: Pneumatically driven & electronically controlled, closed, semi-closed and semi-open
● Anesthesia Ventilator: Built-in high visibility, wide angle LED alphanumeric data display
● Standard integrated metallic modular respiratory circuit; completely solves the problem of gas sealing under high temperature disinfection, easy to clean and disinfect
● High precision two tube flowmeter, fitted with interlocking oxygen-nitrous oxide supply, guarantees oxygen output is never lower than 21%
● Power Failure Support Functions: Automatically converts to backup power mode during AC power outages
● Fully metallic frame, precise construction, elegant design, equipped with automated self-checking function during startup and an automatic self-calibrating sensor
● Alarms: Audible and/or visual alarms for tidal volume, airway pressure, power failure, oxygen failure and other alarms
Availability:
Quantity:
  • JINLING-01

  • Perlong

JINLING-01 Anesthesia Machine


Specifications

▅ Display: LED

▅ Flowmeter Range: O2: 0.1-10L/min    N2O: 0.1-10L/min

▅ Ventilation Mode: IPPV, SIPPV, MANUAL

▅ Back-up Power Supply: At least 4 hours

▅ Tidal Volume: Adjustable range: 50-1500ml / Display range: 0-2000ml

▅ Respiratory Rate: 4-40bpm

▅ Inspiratory/Expiratory (I:E) Ratio: 1:1.5-1:3.0

▅ Inspiratory Pressure Trigger Range: -10-10cmH2O

▅ Vaporizer Concentration Ranges: 0-5%

▅ Vaporizer Slots: Single PA-80 type slot
