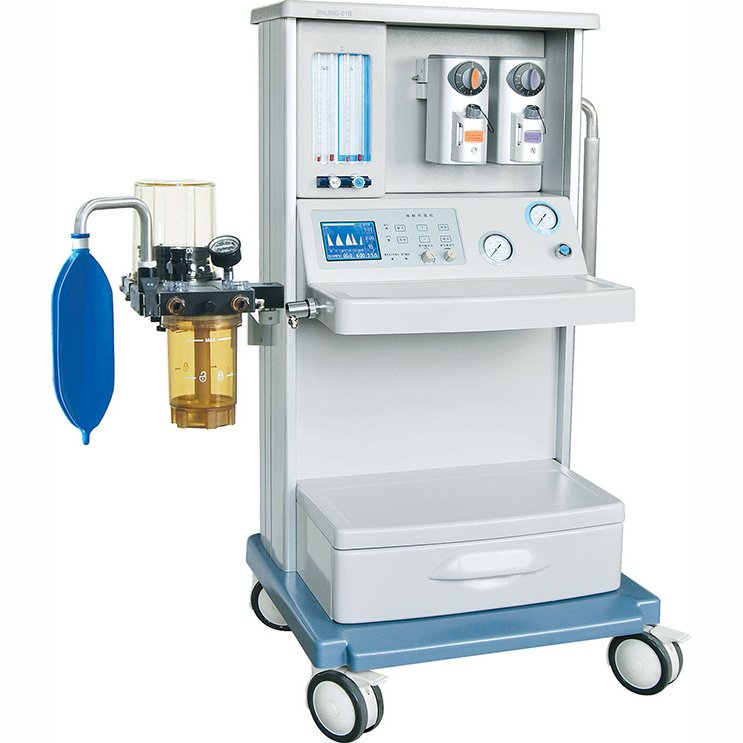

JINLING-01B Anesthesia Machine
Home » Products » Surgery & ICU Equipment » Anesthesia Machine » JINLING-01B Anesthesia Machine

PRODUCT CATEGORIES

loading

Share to:
sharethis sharing button

JINLING-01B Anesthesia Machine

Availability:
Quantity:
  • JINLING-01B

Specifications

l     Operating mode: pneumatically driven and electronically controlled; closed; semi-closed; semi-open..

l     Anesthesia ventilator: built-in 5.4 inch TFT display, able to display Pressure-Time, Frequency-Time and both waveforms simultaneously on screen.

l     Standard integrated metallic modular respiratory circuit; completely solves the problem of gas sealing under high temperature disinfection, easy to clean and disinfect.

l     Power failure support functions: automatically converts to standby mode during AC power outages.

l     Nonhazardous environmentally friendly frame, precise construction, elegant design, equipped with automated self-checking function during startup and an automatic self-calibrating sensor.

l     High precision four-tube flowmeter: O2: 0.1 ~ 10 L/min, N2O: 0.1 ~ 10 L/min

l     Ventilation modes: A/C, IPPV, SIPPV, manual

l     Tidal volume: adjustable range: 50 ~ 1500 ml, display range: 0 ~ 2000 ml

l     Ventilation frequency: 1 ~ 99 bpm

l     I:E: 4:1 ~ 1:10 (capable of inverse ratio ventilation)

l     Inspiratory trigger pressure: -10 ~ 10 cmH2O

l     Sigh: 80 ~ 160 times adjustable

l     Alarms: audible and/or visual alarms for tidal volume, airway pressure, power failure, oxygen failure and other alarms, also features a alarm query function.

l     Equipped with infrared turbine flow sensor; precisely measures gas flows, stable and reliable.

l     Vaporizer: imported tank components assembled; Enflurane, Isoflurane and Sevoflurane (Halothane optional). Also possesses self-compensating functionality.

l     Concentration range for vaporizer: 0 ~ 5%

l     Optional: PA-80 type vaporizer (Economic model)

l     Optional: two vaporizers, patient monitor (Advanced model)
