JINLING-01B II Anestesia Machine

● Operating Modes: Pneumatically driven & electronically controlled, closed, semi-closed and semi-open
● Anesthesia Ventilator: Built-in high visibility, wide angle LED alphanumeric data display
● Standard integrated metallic modular respiratory circuit; completely solves the problem of gas sealing under high temperature disinfection, easy to clean and disinfect
● High precision two tube flowmeter, fitted with interlocking oxygen-nitrous oxide supply, guarantees oxygen output is never lower than 21%
● Power Failure Support Functions: Automatically converts to backup power mode during AC power outages
● Fully metallic frame, precise construction, elegant design, equipped with automated self-checking function during startup and an automatic self-calibrating sensor
● Alarms: Audible and/or visual alarms for tidal volume, airway pressure, power failure, oxygen failure and other alarms
Availability:
Quantity:
  • JINLING-01B II

  • Perlong

JINLING-01B Anesthesia Machine


Specifications

▅ Display: 5.4 inch TFT display

▅ Flowmeter Range: O2: 0.1-10L/min    N2O: 0.1-10L/min

▅ Ventilation Mode: IPPV, SIPPV, IMV, SIMV, MANUAL

▅ Back-up Power Supply: At least 4 hours

▅ Tidal Volume: Adjustable range: 50-1500ml / Display range: 0-2000ml

▅ Respiratory Rate: 1-99bpm

Oxygen Supply Flow Rate: 25-75L/min

▅ Inspiratory/Expiratory (I:E) Ratio:4:1-1:10 (capable of inverse ratio ventilation)

▅ Inspiratory Pressure Trigger Range:.-10-10cmH2O (electronically controlled)

▅ Sigh: 1 sigh breath in every 80-160 breaths

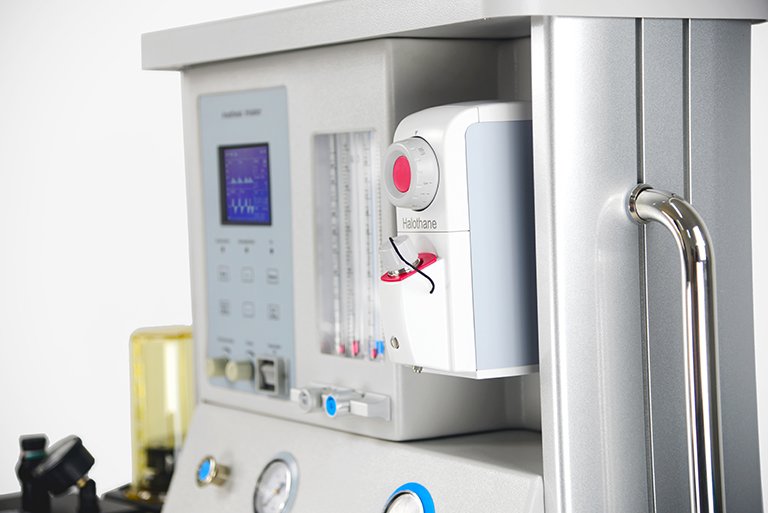

▅ Vaporizer Concentration Ranges: 0-5%

▅ Vaporizer Slots: Single PA-1 type slot

▅ Gas Supply Pressure: O2: 0.32MPa~0.6MPa: N2O: 0.32MPa~0.6MPa
