JINLING-850 Anesthesia Machine

●Operating Modes: Pneumatically driven & electronically controlled, closed, semi-closed and semi-open
●Anesthesia Ventilator: Built-in 8.4 inch color TFT display, able to display Pressure-Time, Flow-Time, Pressure-Volume and Flow-Volume, displayed waveforms can be cycled instantly with a touch of a button
●Standard integrated metallic modular respiratory circuit; completely solves the problem of gas sealing under high temperature disinfection, easy to clean and disinfect
●Power Failure Support Functions: Automatically converts to backup power mode during AC power outages
●Equipped with electronic pressure differential flow sensor, imported respiratory control valve, stable and reliable, rapid response time
Availability:
Quantity:
  • JINLING-850

  • Perlong

JINLING-850 Anesthesia Machine


Specifications

▅ Display: 8.4 inch TFT display

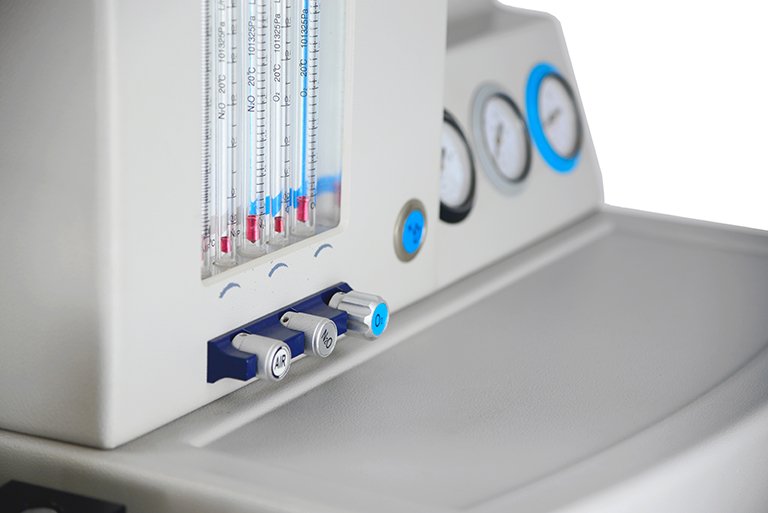

▅ Flowmeter Range: O2: 0.1-10L/min    N2O: 0.1-10L/min   Air: 0.1-10L/min

▅ Ventilation Mode: IPPV, SIPPV, VCV, IMV, SIMV, MANUAL, Standby

▅ Back-up Power Supply: At least 4 hours

▅ Tidal Volume: Adjustable range: 20-1500ml / Display range: 0-2000ml

▅ Respiratory Rate: 1-100bpm

▅ Inspiratory/Expiratory (I:E) Ratio: 8:1-1:10 (capable of inverse ratio ventilation

▅ PEEP Range: 0-20cmH2O (electronically controlled)

▅ Inspiratory Pressure Trigger Range: -10-10cmH2O (electronically controlled)

▅ Sigh: 1 sigh breath in every 80-120 breaths

▅ Inhaled Oxygen Concentration Monitor: 21-100%

▅ SIMV Rate: 1-20bpm

▄ Inspiratory Plateau: 0-1secpnd

▅ Vaporizer Concentration Ranges: 0-5%

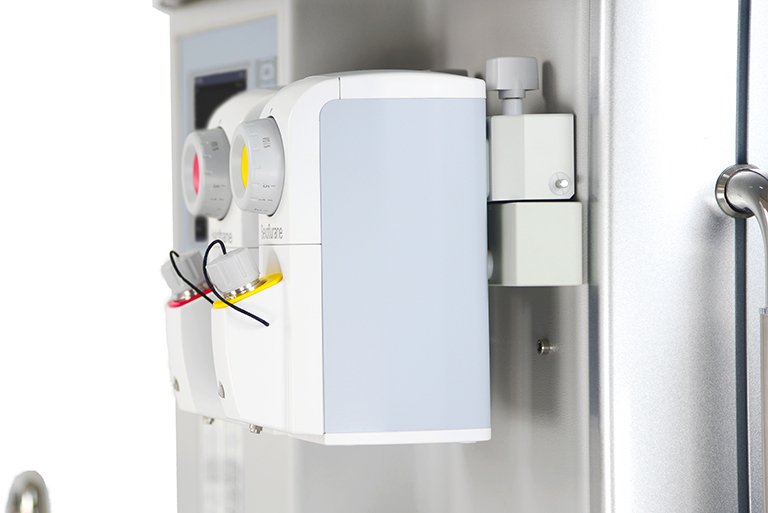

▅ Vaporizer Slots: Double PA-I type slots
